Hittite unveils E-band power detector
The company's power detector is designed for the communications, test & sensor markets
The HMC7447 power detector provides a linear output voltage over a -0.5 to +23.5 dBm input power range with low insertion loss of 0.45 dB and typical input return loss of only 19.5 dB.
Ideal for monitoring transmitter operation or enabling closed loop transmitter output power, the detector exhibits excellent sensitivity and a frequency response of ±0.2 dB over the 71 to 86 GHz frequency band.
The HMC7447 power detector also provides good repeatability and flat performance over varying temperature and output load variations. It may be interfaced to an op-amp circuit to achieve a slope of 20 mV/dB at the minimum detector input power level.

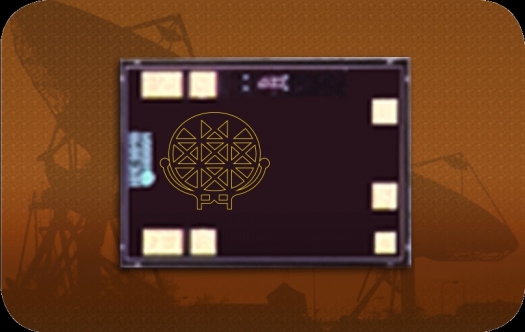

Available in die format, the HMC7447 complements the company's E-Band product offering, and can be used in conjunction with the HMC-APH633 and HMC-APH634 E-band power amplifiers.
The HMC7447 power detector features I/Os that are internally matched to 50 Ω and require no external matching components. Die samples are available from stock and can be ordered via the company's e-commerce site or via direct purchase order.
